How Can I Ask Suppliers to Provide Inspection Reports When I Import Custom CNC Machining Parts from China?

We have seen it happen dozens of times on our supply chain floor: a shipment lands in the US, parts look fine in the box, but the first batch fails incoming inspection. No data. No report. No way to trace what went wrong. That gap costs real money, and it starts long before production begins.

To get useful inspection reports from a China CNC supplier, specify every required document by name in your purchase order before production starts. List the FAI report, IPQC sheets, OQC report, and material certifications explicitly. State that shipment is conditional on your approval of these documents. This is the only approach that creates a real obligation for the supplier to deliver.

Most buyers ask for reports too late — after parts ship. By then, the leverage is gone. Set the rules early, in writing, and you control the process.

What Type of Inspection Report Should I Request for CNC Parts?

In our experience supporting export orders to North America, the most common mistake buyers make is asking for "a quality report" without defining what that means. Vague requests get vague documents. You need to name each report type specifically.

For custom CNC machined parts, you should request four documents: a First Article Inspection (FAI) report with CMM data and a ballooned drawing, In-Process Quality Control (IPQC) sheets for critical dimensions, an Outgoing Quality Control (OQC) report with AQL sampling results, and material certifications with heat or lot traceability.

The Four Core Inspection Documents

Each document serves a different purpose in the quality chain. Here is a breakdown of what each one covers and when you receive it.

Why a Certificate of Conformance Is Not Enough

Some suppliers offer a Certificate of Conformance (CoC) ¹ instead of a full inspection report. A CoC is a declaration. It says "we checked, parts are good." It gives you no measured values, no instrument data, and no evidence trail for root cause analysis when something fails downstream. Reject it as a substitute for actual inspection data.

What Makes an FAI Report Valid

A valid First Article Inspection (FAI) report ² must include:

• Part number and drawing revision level
• Purchase order number
• Date of inspection
• Inspector name and signature
• Nominal dimension for every ballooned feature
• Tolerance for every feature
• Actual measured value
• Pass or fail status

If any of these fields are missing, the document is incomplete. Send it back and ask for a corrected version before approving production to continue.

Instrument Requirements by Feature Type

Not every dimension requires a CMM. Matching the right instrument to the feature type keeps reporting accurate and keeps supplier costs reasonable.

Each measured value in the report should be traceable to a specific instrument by instrument ID and current calibration status. If a supplier cannot provide calibration records, that is a red flag.

Should I Ask for Full Dimensional Reports or Key-Dimension Reports?

Our engineers have wrestled with this question on many projects. Full dimensional reports are thorough but slow. Key-dimension reports are faster but can miss drift on non-critical features. The right answer depends on where you are in the supplier relationship and what risk you are managing.

For a new supplier or a new part, always request a full dimensional FAI report covering every feature on your drawing. Once the supplier has three or more approved production lots with zero nonconformances, you can shift to a key-dimension OQC report for routine batches, with a trigger clause that restores full reporting if any nonconformance occurs.

Understanding the Trade-Off

Full dimensional reporting takes more time and costs the supplier more labor. If you require it on every lot indefinitely, some suppliers will pad the price or rush the measurement to cut time. That defeats the purpose.

Key-dimension reporting focuses on Critical-to-Quality (CTQ) features — the dimensions most likely to affect function, fit, or safety. These are the dimensions you identify, not the supplier.

How to Identify Your CTQ Dimensions

Go through your drawing and ask three questions for each dimension:

1. If this dimension is out of tolerance, does the part fail to fit?
2. If this dimension is out of tolerance, does the part fail to function?
3. If this dimension is out of tolerance, does it create a safety risk?

Any dimension that answers yes to at least one question is a CTQ dimension. Mark it clearly on a pre-ballooned drawing before you send it to the supplier.

Escalating Documentation Protocol

A practical approach proportions documentation to actual risk rather than applying maximum rigor to every lot. For routine batches with an established supplier, the OQC report should include AQL sampling ³ results that align with your agreed defect thresholds for major and minor nonconformances.

This model keeps overhead manageable while keeping oversight proportionate to actual supplier track record.

Watch the Borderline Values

When you review an inspection report, do not only look for fail flags. Look at the deviation column for any dimension where the actual value is within tolerance but close to the limit. A dimension that reads at 95% of tolerance today is likely to drift out of tolerance in the next production lot. Flag those values, discuss them with the supplier, and ask what process controls — such as statistical process control (SPC) ⁴ — they have in place to prevent further drift.

How Can I Make Sure Inspection Data Matches My Drawing Revision?

This is one of the most common and costly errors we see in cross-border CNC part orders. The supplier measures against an old drawing revision. Parts are made to the wrong specification. Nobody catches it until parts are on a ship or already at the buyer's dock.

To ensure inspection data matches your current drawing revision, provide a pre-ballooned copy of the correct drawing revision with every purchase order, require that the report header shows the drawing revision number explicitly, and reject any report where the revision level does not match your current release.

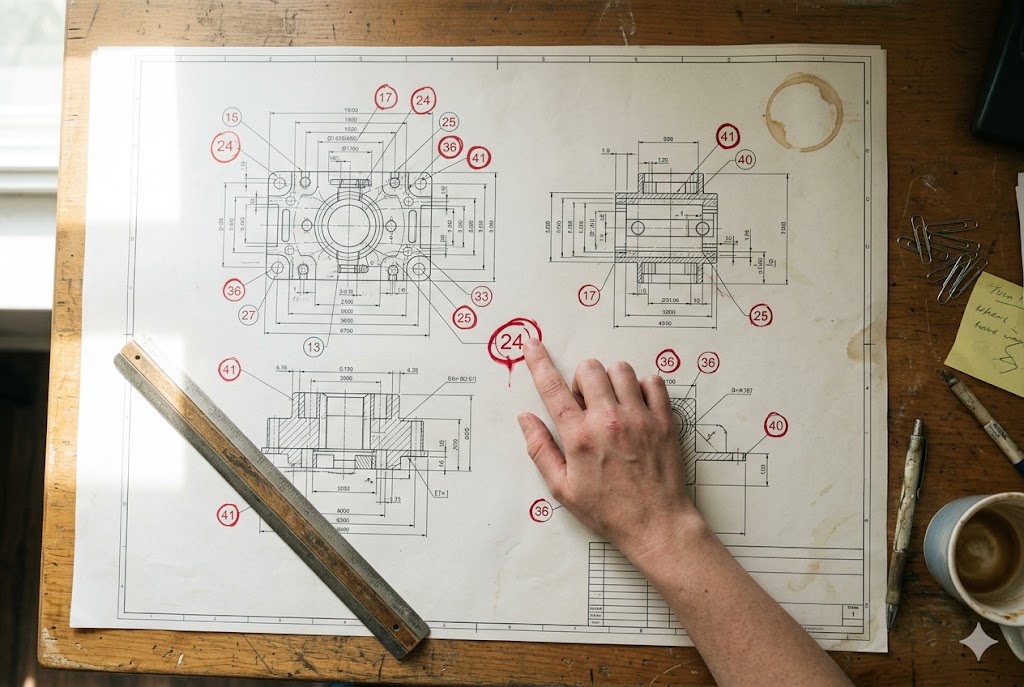

The Ballooned Drawing Method

A ballooned drawing is your 2D drawing with every dimension sequentially numbered — balloon 1, balloon 2, balloon 3, and so on. This numbering creates a shared reference key. Every row in the inspection report links to a balloon number on the drawing. There is no ambiguity about which measured value corresponds to which dimension.

Steps to prepare a ballooned drawing:

1. Take the final released revision of your 2D drawing.
2. Number every dimension, tolerance, GD&T callout ⁵, and surface finish requirement sequentially.
3. Export as PDF.
4. Include this PDF with your purchase order.
5. Instruct the supplier to use this numbering in all inspection reports.

Revision Control Checklist

Before approving any inspection report, check the header against this list:

• Part number matches purchase order
• Drawing revision matches your current release (e.g., Rev C, not Rev B)
• Purchase order number matches your issued PO
• Date of inspection falls within the production window
• Inspector name and signature are present

If any field mismatches, return the report immediately. Do not approve production to continue until the correct revision is confirmed.

Why Revision Mismatches Happen

The most common cause is simple: the supplier's production team works from a saved drawing on a local drive, and nobody updates the file when you issue a revision. The fix is procedural — require the supplier to confirm in writing which drawing revision they are working from before cutting starts, and include a revision confirmation step in your purchase order process.

What Report Format Is Easiest for Me to Review and Approve?

When we handle quality documentation for our clients, we focus on one thing: can the buyer read this report without needing the supplier to explain it? If the answer is no, the report is not fit for purpose.

The easiest inspection report format to review is a bilingual (English and Chinese) Excel or PDF with a clear header section, one row per ballooned feature, and columns for balloon number, nominal dimension, tolerance, actual measured value, instrument ID, and pass or fail status — with fail rows highlighted in red.

English-Language Requirement

Require all inspection reports to be submitted in English, or with an English translation column alongside any Chinese entries. A Chinese-only report forces you to rely on the supplier's verbal interpretation of their own data. That defeats the purpose of having an independent written record. Most China CNC suppliers with genuine export experience already produce bilingual documentation and will agree to this without resistance.

If a supplier pushes back on the English-language requirement, that is a signal about the maturity of their quality system.

Ideal Report Column Structure

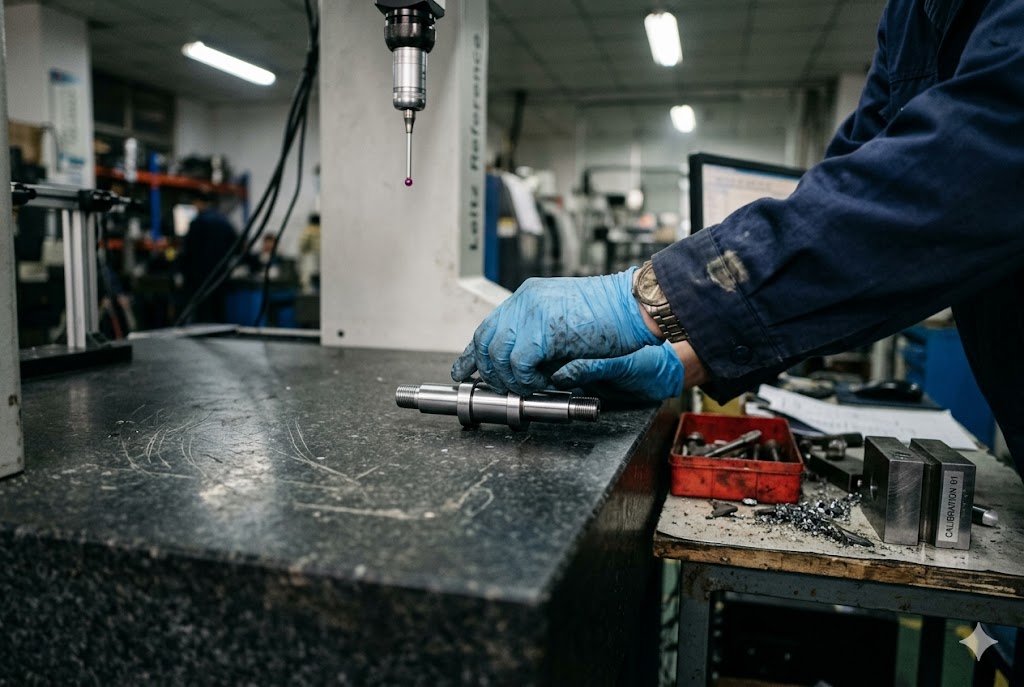

When complex geometries or tight-tolerance features are involved, the report should reference measurements taken by a Coordinate Measuring Machine (CMM) ⁶, linking each result to a specific machine ID and calibration date. For surface finish callouts, measured values for surface roughness parameters such as Ra and Rz ⁷ should be recorded using a calibrated contact profilometer. Threaded features must be verified using thread gauges with Go/No-Go pass/fail results ⁸ linked to calibrated gauge IDs. For raw material traceability, suppliers should show results from handheld XRF analysis ⁹ or provide a traceable mill certificate showing alloy grade and heat number.

Four-Step Report Review Process

When you receive a report, read it in four steps before approving shipment:

1. Header check — Part number, drawing revision, and PO number must all match exactly.
2. Fail flag scan — Look for any red cells or fail flags on any dimension.
3. Borderline value check — Identify dimensions where the actual value is within tolerance but close to a limit. Flag these for discussion.
4. Instrument traceability check — Confirm instrument IDs correspond to equipment listed in the supplier's calibration certificates.

Screening Suppliers by Their Response to Format Requests

Treat the supplier's response to a report format request as a qualification test. A capable supplier will ask which dimensions are critical, which instruments you require, and what format works best for your review. They already produce this documentation routinely and want to align to your expectations. Understanding the different CMM types and their capabilities ¹⁰ can help you have a more informed conversation with your supplier about what measurement equipment they use. A supplier who pushes back, claims reports are not standard, or offers a blank CoC as a substitute is showing you exactly what you will receive on every order. That information is valuable before you commit to an order, not after.

Conclusion

Getting good inspection reports from China CNC suppliers is not complicated. Name every document in your purchase order, provide a ballooned drawing, set shipment release conditions, and require English-language output. Do this before production starts, and you stay in control of quality from day one.
