How Do I Specify and Verify Plating Thickness Tolerance on Swiss CNC Parts Drawings?

Engineer reviewing custom mechanical part drawing with caliper tools (ID#1)

Our shop floor sees this question every week: a buyer's drawing says "zinc plate" and nothing else, then the parts come back out of tolerance.

You specify plating thickness tolerance by adding a minimum value plus a tight bilateral range to fit-critical dimensions, citing the full ASTM B633 classification, noting "dimensions apply after plating," and verifying actual parts with XRF or cross-section microsection against your written quality plan.

Let's break this down step by step, starting with how to measure thickness accurately.

What Plating Thickness Measurement Methods (X-Ray Fluorescence, Cross-Section) Are Most Accurate?

When we run XRF 1 checks on the line, we see why buyers get confused: a coupon reading and a real part reading rarely match.

XRF is the most practical non-destructive method for daily checks, while ASTM B487 cross-section microsection is the most accurate referee method when measurements are disputed; specify XRF for routine lot acceptance and reserve cross-section testing for arbitration.

Quality technician measuring machined metal component with digital caliper tool (ID#2)

Why Coupon Readings Can Mislead You

Many Chinese plating shops run their XRF gun on a flat witness coupon that travels through the tank with your batch. This coupon is easy to measure and gives a clean number. But your real parts are not flat. They have threads, bores, and small turned diameters. Plating builds up differently on these shapes. If your drawing only asks for "plating thickness per ASTM B633" without saying where to measure, the plater will hand you a coupon report that looks great but tells you very little about your actual parts. You must name the surface and the location on the drawing or in the quality plan.

When Cross-Section Becomes the Referee

XRF is fast, but it has limits. Spot size on a small Swiss-turned diameter can pick up signal from the base metal next to the coating, which skews the reading. Calibration drift is also common on older XRF guns. When a supplier's XRF number and your incoming inspection disagree, ASTM B487 cross-section microsection 2 settles the dispute. This method cuts the part, mounts it, and measures the coating layer directly under a microscope. It is slower and destroys the sample, but the result is hard to argue with. Put this method in your contract as the binding test for any dispute.

Method Speed Destructive Best Use Typical Accuracy
XRF Fast, minutes No Daily lot acceptance Good on flat areas, weaker on small radii
Cross-Section (ASTM B487) Slow, hours Yes Dispute resolution, FAI Very high, direct measurement
Coulometric 3 Moderate Yes (strips coating) Lab verification High on uniform surfaces

Guard-banding closes the gap between these two methods. Since XRF carries roughly ±10–20% reading uncertainty at thin deposits, build that margin into your acceptance line. If your drawing minimum is five microns, do not accept a lot whose average XRF reading sits right at five. Push your internal acceptance number a notch higher so every part, measured anywhere, still clears the true minimum.

XRF readings on a witness coupon do not guarantee the same thickness on your actual threaded parts True
Plating deposit varies with part geometry, so a flat coupon almost always reads differently than a small turned diameter or thread root.
XRF and cross-section testing always give the exact same thickness number False
XRF measures from the surface down and can be affected by spot size and substrate, while cross-section directly measures the layer, so small differences are normal and expected.

What Is the Typical Plating Thickness Tolerance a Chinese Electroplating Facility Can Hold?

Our quality team audits plating shops 4 across the Pearl River Delta, and tolerance control varies more than most buyers expect.

A capable Chinese plater can typically hold a bilateral thickness range of plus or minus two to four microns on accessible surfaces, but recessed threads and bore bottoms always receive less deposit, so the controlled measurement location must be specified, not assumed.

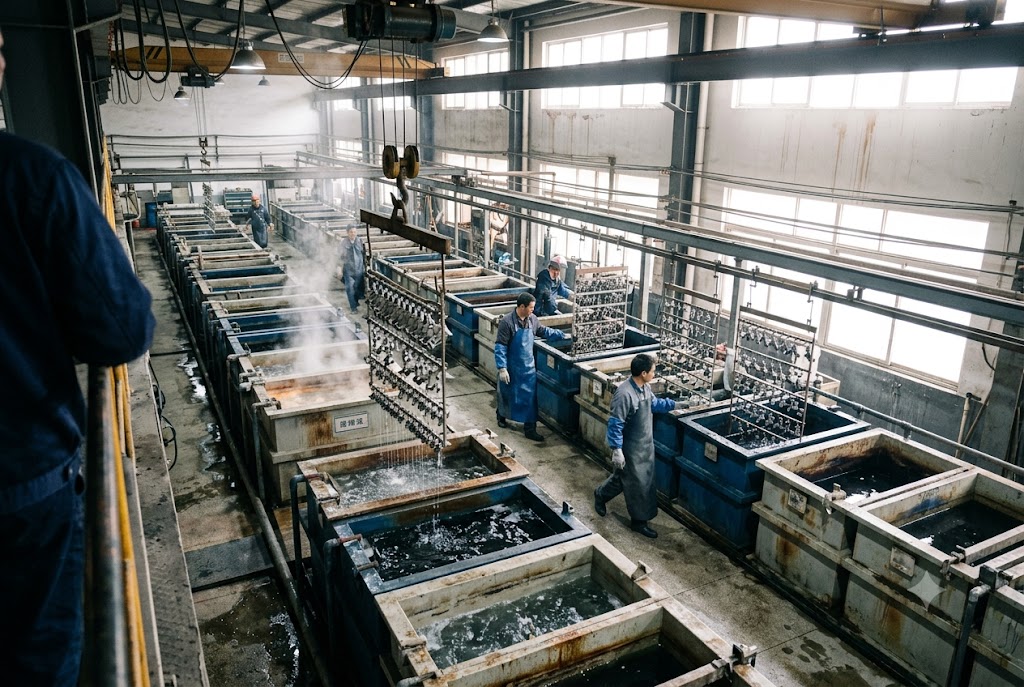

Factory workers operating electroplating line for custom mechanical parts production (ID#3)

Tolerance Ranges by Plating Type

Not every coating behaves the same way in the tank. Zinc, nickel, and chrome each plate at different rates and hold different tolerances on small parts. A drawing note must include the full classification, not just the metal name.

Plating Type Common Standard Typical Bilateral Range Notes
Zinc (Fe/Zn) ASTM B633 5 ±2–4 µm Watch thread pitch diameter buildup
Electroless Nickel ASTM B733 6 ±1–3 µm More even coverage on small features
Hard Chrome AMS 2406 7 ±5–8 µm Often needs post-plate grinding
Trivalent Chromate Conversion ASTM B633 Type III ±0.1–0.3 µm Very thin, mainly corrosion barrier

Significant Surfaces vs Exempt Geometry

ASTM B633 sorts surfaces into two groups. Significant surfaces are flat, visible, and reachable by normal measurement tools. Exempt surfaces are deep bores, thread roots, and tight corners where current does not reach evenly. If your callout does not state which group applies, the plater will use the easiest interpretation, usually the outside corner, which always reads thicker than the rest of the part.

Why Deposit Is Never Even

Outside edges and crests can pick up 1.5 to 2 times the average coating thickness, while bore bottoms and thread roots pick up far less. This means your true minimum thickness lives in the recess, not on the corner. When you write a minimum thickness callout, name the deepest accessible surface as the controlled location. Otherwise, your supplier can pass inspection on a corner reading while the functional surface underneath the minimum requirement.

Recessed surfaces like thread roots and bore bottoms always receive less plating deposit than outside corners True
Electroplating current concentrates on protruding, accessible areas, so recesses naturally build up coating more slowly during the plating cycle.
A single nominal plating thickness number on the drawing is enough to control quality False
A nominal value with no range and no measurement location leaves room for disputes, since deposit varies by surface and the plater has no defined target window.

How Does Plating Thickness Variation Affect the Fit and Function of Precision Threaded Swiss-Turned Parts?

Our engineers calculate pre-plate stock on every threaded part, because plating buildup on pitch diameter is what causes field fit failures.

Plating thickness on threaded Swiss-turned parts directly reduces pitch diameter clearance; if the supplier machines to nominal instead of a pre-plate target, the deposit buildup pushes external threads tight, causing Go/No-Go gauge failures and assembly problems downstream.

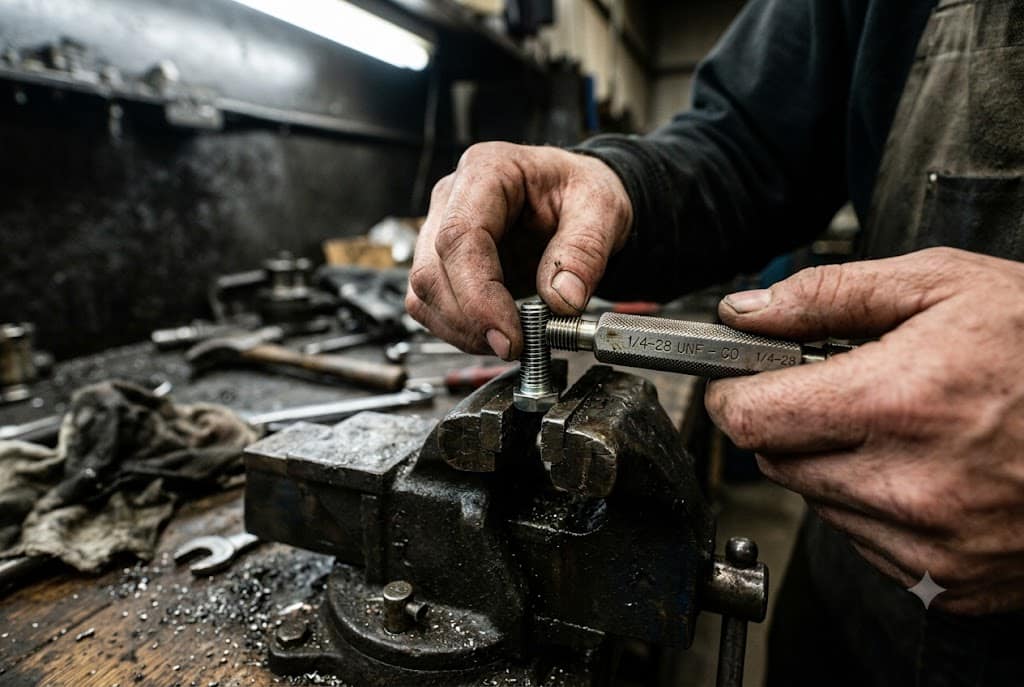

Worker using thread gauge to verify bolt thread specifications during quality control (ID#4)

Calculating Pre-Plate Stock

Every coating adds thickness on top of the base metal. On flat surfaces this is simple math. On threads, it changes the pitch diameter, which is the dimension that controls fit with a mating nut or hole. If a supplier machines the thread to the nominal pitch diameter and then plates it, the thread will come out tighter than designed. The fix is to machine the thread slightly undersize before plating, leaving room for the coating to bring it back to the correct final size.

Plating Type Recommended Pre-Plate Offset (Pitch Diameter) Verification Method
Zinc per ASTM B633 0.025–0.038 mm low Go/No-Go thread gauge
Electroless Nickel 0.010–0.020 mm low Go/No-Go thread gauge
Trivalent Chromate Only Negligible, under 0.005 mm Visual plus spot check

Verifying Thread Fit After Plating

A drawing note alone does not guarantee a good thread. After plating, every batch needs Go/No-Go gauge 8 checks on the threaded feature. If the No-Go gauge engages, this tells you something failed upstream, either the pre-plate machining was off or the plating deposit ran heavier than planned. This check is fast, cheap, and catches the problem before parts ship. We treat this gauge step as mandatory, not optional, on any threaded part that gets plated, because a tight thread on a customer's assembly line causes far more cost than a five-minute gauge check on our floor.

Fit problems on threaded plated parts rarely show up in a visual inspection. The part looks fine, the coating looks even, but the thread will not turn freely onto the mating part. This is why gauge verification, not visual check, must be written into your incoming inspection plan.

Pre-plate machining should target the low side of pitch diameter tolerance on threads that will be plated True
This leaves room for the coating buildup, so the finished thread lands within the correct pitch diameter range after plating.
A part that looks visually fine after plating will always thread together correctly False
Visual inspection cannot detect small pitch diameter changes caused by coating buildup, so Go/No-Go gauge testing is needed to confirm actual thread fit.

Should Plating Thickness Verification Be Included in My FAI Report Requirements?

Our FAI packages always list every plating sub-supplier by name, because hidden tier-two platers are where most quality gaps start.

Yes, your FAI report should require plating thickness measurements on actual parts, written disclosure of all plating sub-suppliers, and a RoHS hexavalent chromium test citing IEC 62321-7-1, because these three items catch the failures that generic "RoHS compliant" notes miss.

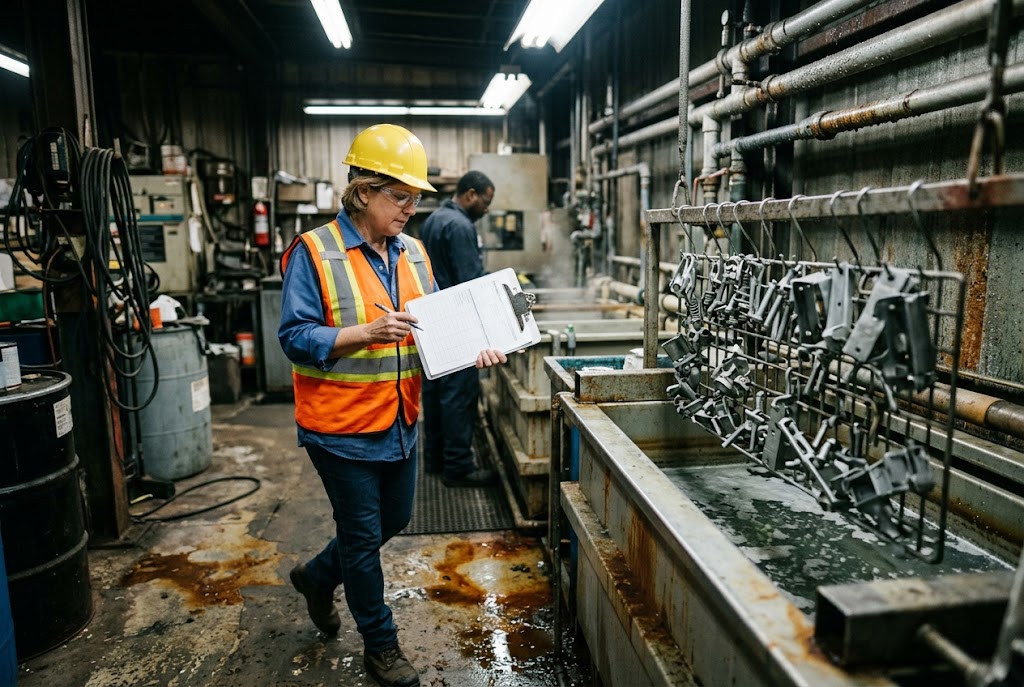

Quality inspector in safety gear documenting plated metal parts on production line (ID#5)

What to Put on the FAI Checklist

A strong FAI report 9 for plated Swiss parts goes beyond dimensional checks. It must confirm the coating itself meets the drawing callout, on the actual part, at the named surface location. It should also confirm chemical compliance, since many buyers assume "RoHS compliant" is enough when it is not contractually clear without a standard reference.

FAI Requirement Why It Matters
XRF reading on actual part, named surface Confirms real coating thickness, not just a coupon
Cross-section sample on first lot Validates XRF accuracy against a direct measurement
Plating sub-supplier disclosure Identifies who actually ran the plating process
IEC 62321-7-1 10 hexavalent chromium test Confirms RoHS compliance with a clear test method
Go/No-Go gauge result on threaded features Confirms fit was not affected by coating buildup

Auditing the Plating Sub-Supplier

Many Chinese mechanical parts suppliers do not run their own plating line. They send parts out to a tier-two plater and often do not disclose this in the quote or the FAI package. This matters because the prime supplier's quality system does not automatically apply to the sub-supplier's tank. Your purchase order should require written disclosure of every plating sub-supplier used, and your quality plan should apply the same XRF testing, documentation, and RoHS testing requirements to that sub-supplier as you apply to the main factory. This single requirement closes the biggest gap we see in incoming inspection on plated parts: nobody checked who actually did the plating.

An FAI report for plated parts should include plating sub-supplier disclosure True
Many suppliers subcontract plating without telling the buyer, so disclosure lets you verify the actual process controls used on your parts.
A general "RoHS compliant" note on the drawing is enough to control hexavalent chromium False
Without citing a test method like IEC 62321-7-1, this note has no enforceable standard behind it and is difficult to verify or dispute.

Conclusion

Clear callouts, named measurement locations, and sub-supplier disclosure turn plating thickness from a guessing game into a controlled, verifiable process.
